Upstash QStash

Overview

@kubiks/otel-upstash-queues provides comprehensive OpenTelemetry instrumentation for Upstash QStash. Capture spans for both message publishing and consumption with detailed operation metadata and delivery tracking.

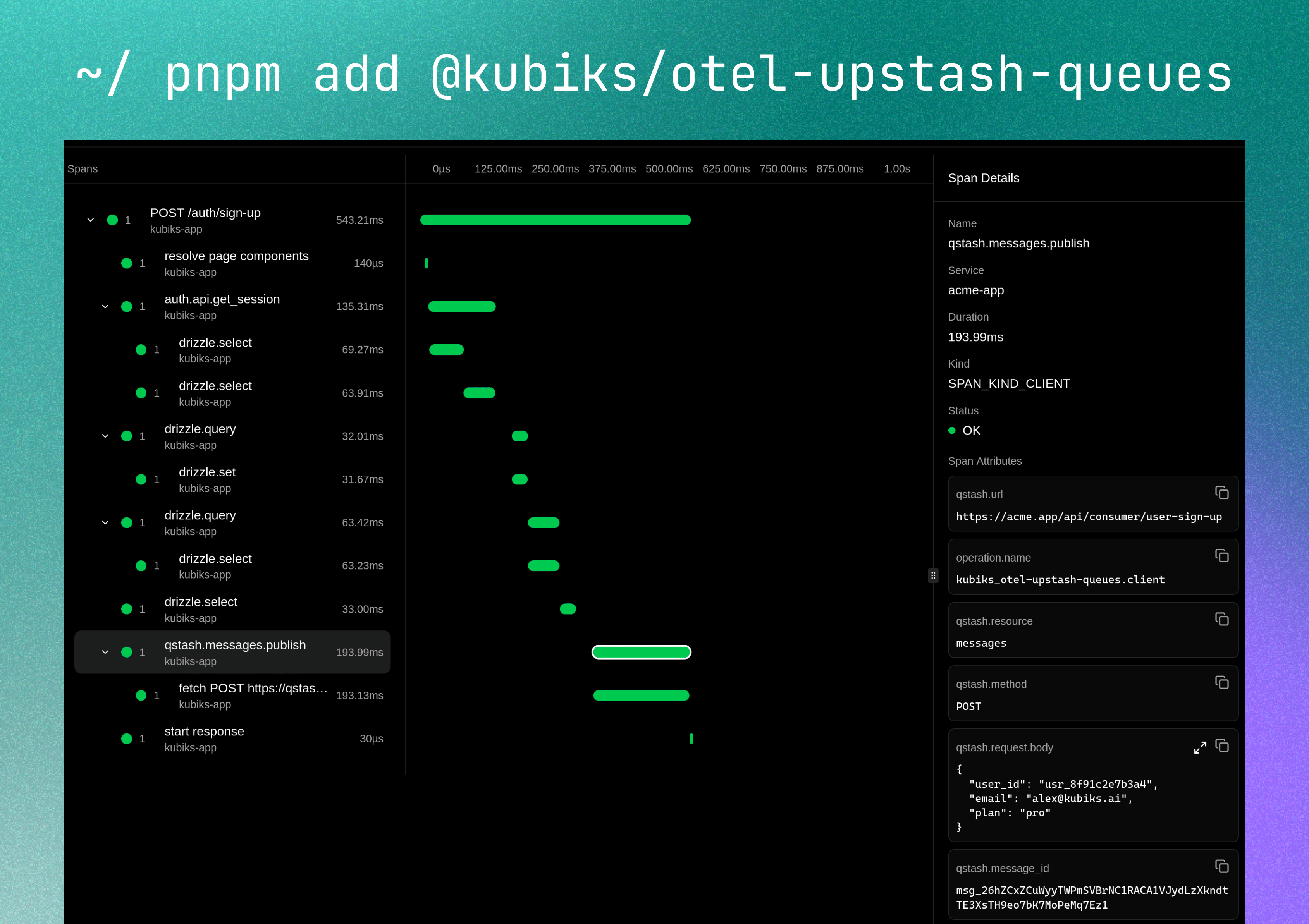

Visualize your message queue operations with detailed span information including message publishing, callbacks, and delivery tracking—from producer to consumer.

Installation

npm install @kubiks/otel-upstash-queues

pnpm add @kubiks/otel-upstash-queues

yarn add @kubiks/otel-upstash-queues

Peer Dependencies: @opentelemetry/api >= 1.9.0, @upstash/qstash >= 2.0.0

Quick Start

Publishing Messages

import { Client } from "@upstash/qstash";
import { instrumentUpstash } from "@kubiks/otel-upstash-queues";

const client = instrumentUpstash(
  new Client({ token: process.env.QSTASH_TOKEN! })
);

await client.publishJSON({
  url: "https://your-api-endpoint.com/process-image",
  body: { imageId: "123" },
});

instrumentUpstash wraps the QStash client instance you already use—no configuration changes needed. Every SDK call creates a client span with useful attributes.

Consuming Messages

// app/api/process/route.ts
import { verifySignatureAppRouter } from "@upstash/qstash/nextjs";
import { instrumentConsumer } from "@kubiks/otel-upstash-queues";

async function handler(request: Request) {
  const data = await request.json();

  // Process your message
  await processImage(data.imageId);

  return Response.json({ success: true });
}

// Instrument first, then verify signature
export const POST = verifySignatureAppRouter(instrumentConsumer(handler));

instrumentConsumer wraps your message handler to trace message consumption, creating a SERVER span for each message received and processed.

What Gets Traced

This instrumentation provides two main functions:

instrumentUpstash

Wraps the QStash client to trace message publishing with SpanKind.CLIENT

instrumentConsumer

Wraps your message handler to trace message consumption with SpanKind.SERVER

Configuration

With Body Capture

Optionally capture request/response bodies for debugging:

const client = instrumentUpstash(
  new Client({ token: process.env.QSTASH_TOKEN! }),
  {
    captureBody: true,      // Enable body capture (default: false)
    maxBodyLength: 2048,    // Max characters to capture (default: 1024)
  }
);

Body capture is disabled by default to protect sensitive data. Only enable in secure, development environments.

Span Attributes

Publisher Spans (`instrumentUpstash`)

Attribute	Description	Example
`messaging.system`	Constant value `qstash`	`qstash`
`messaging.operation`	Operation type	`publish`
`qstash.resource`	Resource name	`messages`
`qstash.target`	Full operation target	`messages.publish`
`qstash.url`	Target URL for the message	`https://example.com/api/process`
`qstash.method`	HTTP method (default: POST)	`POST`, `PUT`, `GET`
`qstash.message_id`	Message ID returned by QStash	`msg_123`
`qstash.delay`	Delay before processing (seconds or string)	`60` or `"1h"`
`qstash.not_before`	Unix timestamp for earliest processing	`1672531200`
`qstash.deduplication_id`	Deduplication ID for idempotent operations	`unique-id-123`
`qstash.retries`	Number of retry attempts (max)	`3`
`qstash.callback_url`	Success callback URL	`https://example.com/callback`
`qstash.failure_callback_url`	Failure callback URL	`https://example.com/failure`

Consumer Spans (`instrumentConsumer`)

Attribute	Description	Example
`messaging.system`	Constant value `qstash`	`qstash`
`messaging.operation`	Operation type	`receive`
`qstash.resource`	Resource name	`messages`
`qstash.target`	Full operation target	`messages.receive`
`qstash.message_id`	Message ID from QStash	`msg_456`
`qstash.retried`	Number of times retried (actual count)	`2`
`qstash.schedule_id`	Schedule ID (if from scheduled message)	`schedule_123`
`qstash.caller_ip`	IP address of the caller	`192.168.1.1`
`http.status_code`	HTTP response status code	`200`

Body/Payload Attributes (Optional)

When captureBody is enabled:

Attribute	Description	Captured By
`qstash.request.body`	Request/message body content	Both publisher and consumer
`qstash.response.body`	Response body content	Consumer only

Usage Examples

Basic Message Publishing

import { client } from "@/lib/qstash";

await client.publishJSON({
  url: "https://your-api.com/webhook",
  body: {
    userId: "user_123",
    action: "process_data",
  },
});

// Traced with:
// - qstash.url: "https://your-api.com/webhook"
// - qstash.method: "POST"
// - qstash.message_id: "msg_..."

await client.publishJSON({
  url: "https://your-api.com/update",
  method: "PUT",
  body: { status: "completed" },
});

// Traced with:
// - qstash.method: "PUT"

await client.publishJSON({
  url: "https://your-api.com/process",
  headers: {
    "X-User-ID": "user_123",
    "X-Priority": "high",
  },
  body: { taskId: "task_456" },
});

Delayed Message Publishing

// Delay message processing by 60 seconds
await client.publishJSON({
  url: "https://your-api.com/delayed-task",
  body: { taskId: "task_456" },
  delay: 60,
});

// Traced with:
// - qstash.delay: 60

// Use human-readable delay format
await client.publishJSON({
  url: "https://your-api.com/delayed-task",
  body: { taskId: "task_789" },
  delay: "1h", // 1 hour
});

// Traced with:
// - qstash.delay: "1h"

// Other examples:
// - "30s" (30 seconds)
// - "5m" (5 minutes)
// - "2h" (2 hours)
// - "1d" (1 day)

// Schedule for a specific time
const scheduledTime = Math.floor(Date.now() / 1000) + 3600; // 1 hour from now

await client.publishJSON({
  url: "https://your-api.com/scheduled-task",
  body: { reportId: "report_456" },
  notBefore: scheduledTime,
});

// Traced with:
// - qstash.not_before: 1672531200

Message with Callbacks

await client.publishJSON({
  url: "https://your-api.com/process",
  body: { orderId: "order_123" },
  callback: "https://your-api.com/success",
});

// Traced with:
// - qstash.callback_url: "https://your-api.com/success"

await client.publishJSON({
  url: "https://your-api.com/process",
  body: { orderId: "order_456" },
  callback: "https://your-api.com/callbacks/success",
  failureCallback: "https://your-api.com/callbacks/failure",
});

// Traced with:
// - qstash.callback_url: "https://your-api.com/callbacks/success"
// - qstash.failure_callback_url: "https://your-api.com/callbacks/failure"

Retries and Deduplication

await client.publishJSON({
  url: "https://your-api.com/critical-task",
  body: { taskId: "critical_123" },
  retries: 5,
});

// Traced with:
// - qstash.retries: 5

// Prevent duplicate processing
await client.publishJSON({
  url: "https://your-api.com/process",
  body: { orderId: "order_789" },
  deduplicationId: `order-${orderId}`,
});

// Traced with:
// - qstash.deduplication_id: "order-order_789"

await client.publishJSON({
  url: "https://your-api.com/critical",
  body: { transactionId: "tx_123" },
  retries: 3,
  deduplicationId: `tx-${transactionId}`,
});

Message Consumer

// app/api/process/route.ts
import { verifySignatureAppRouter } from "@upstash/qstash/nextjs";
import { instrumentConsumer } from "@kubiks/otel-upstash-queues";

async function handler(request: Request) {
  const data = await request.json();

  // Process your message
  console.log("Processing:", data);
  await processTask(data);

  return Response.json({ success: true });
}

// Instrument first, then verify signature
export const POST = verifySignatureAppRouter(instrumentConsumer(handler));

// Traced with:
// - qstash.message_id: from QStash header
// - qstash.retried: retry count
// - http.status_code: response status

export const POST = verifySignatureAppRouter(
  instrumentConsumer(handler, {
    captureBody: true,
    maxBodyLength: 2048,
  })
);

// Additionally captures:
// - qstash.request.body: message payload
// - qstash.response.body: handler response

async function handler(request: Request) {
  try {
    const data = await request.json();
    await processTask(data);
    return Response.json({ success: true });
  } catch (error) {
    console.error("Processing failed:", error);
    // Error is captured in span
    return Response.json(
      { success: false, error: error.message },
      { status: 500 }
    );
  }
}

export const POST = verifySignatureAppRouter(instrumentConsumer(handler));

Complete Integration Example

Here’s a complete example of QStash with OpenTelemetry in a Next.js application:

Setup

lib/qstash.ts

import { Client } from "@upstash/qstash";
import { instrumentUpstash } from "@kubiks/otel-upstash-queues";

export const client = instrumentUpstash(
  new Client({
    token: process.env.QSTASH_TOKEN!,
  }),
  {
    captureBody: process.env.NODE_ENV === "development",
    maxBodyLength: 2048,
  }
);

Publishing Messages

app/actions/tasks.ts

"use server";

import { client } from "@/lib/qstash";

export async function enqueueImageProcessing(imageId: string) {
  try {
    const result = await client.publishJSON({
      url: `${process.env.NEXT_PUBLIC_URL}/api/process/image`,
      body: { imageId },
      retries: 3,
      deduplicationId: `image-${imageId}`,
    });

    return { success: true, messageId: result.messageId };
  } catch (error) {
    console.error("Failed to enqueue task:", error);
    return { success: false, error: error.message };
  }
}

export async function scheduleReportGeneration(reportId: string, delay: string) {
  const result = await client.publishJSON({
    url: `${process.env.NEXT_PUBLIC_URL}/api/process/report`,
    body: { reportId },
    delay,
    callback: `${process.env.NEXT_PUBLIC_URL}/api/callbacks/report-success`,
    failureCallback: `${process.env.NEXT_PUBLIC_URL}/api/callbacks/report-failure`,
  });

  return { messageId: result.messageId };
}

Consuming Messages

app/api/process/image/route.ts

import { verifySignatureAppRouter } from "@upstash/qstash/nextjs";
import { instrumentConsumer } from "@kubiks/otel-upstash-queues";

async function handler(request: Request) {
  const { imageId } = await request.json();

  console.log(`Processing image: ${imageId}`);

  // Simulate image processing
  await processImage(imageId);

  return Response.json({
    success: true,
    imageId,
    processedAt: new Date().toISOString()
  });
}

export const POST = verifySignatureAppRouter(
  instrumentConsumer(handler, {
    captureBody: true,
    maxBodyLength: 1024,
  })
);

async function processImage(imageId: string) {
  // Your image processing logic
  await new Promise(resolve => setTimeout(resolve, 1000));
  console.log(`Image ${imageId} processed`);
}

app/api/process/report/route.ts

import { verifySignatureAppRouter } from "@upstash/qstash/nextjs";
import { instrumentConsumer } from "@kubiks/otel-upstash-queues";

async function handler(request: Request) {
  const { reportId } = await request.json();

  try {
    const report = await generateReport(reportId);
    return Response.json({ success: true, report });
  } catch (error) {
    console.error("Report generation failed:", error);
    return Response.json(
      { success: false, error: error.message },
      { status: 500 }
    );
  }
}

export const POST = verifySignatureAppRouter(instrumentConsumer(handler));

async function generateReport(reportId: string) {
  // Your report generation logic
  return { id: reportId, status: "completed" };
}

Callback Handlers

app/api/callbacks/report-success/route.ts

import { verifySignatureAppRouter } from "@upstash/qstash/nextjs";

async function handler(request: Request) {
  const data = await request.json();
  console.log("Report generated successfully:", data);

  // Update database, send notification, etc.

  return Response.json({ received: true });
}

export const POST = verifySignatureAppRouter(handler);

app/api/callbacks/report-failure/route.ts

import { verifySignatureAppRouter } from "@upstash/qstash/nextjs";

async function handler(request: Request) {
  const data = await request.json();
  console.error("Report generation failed:", data);

  // Log error, notify admin, etc.

  return Response.json({ received: true });
}

export const POST = verifySignatureAppRouter(handler);

Best Practices

Always Use Signature Verification

Always verify QStash signatures to ensure messages are authentic:

import { verifySignatureAppRouter } from "@upstash/qstash/nextjs";

export const POST = verifySignatureAppRouter(
  instrumentConsumer(handler)
);

Use Deduplication for Idempotency

Use deduplication IDs to prevent duplicate processing:

await client.publishJSON({
  url: "https://api.example.com/process",
  body: { orderId },
  deduplicationId: `order-${orderId}`,
});

Configure Appropriate Retries

Set retry counts based on operation criticality:

// Critical operations: more retries
await client.publishJSON({
  url: "https://api.example.com/payment",
  body: { paymentId },
  retries: 5,
});

// Non-critical operations: fewer retries
await client.publishJSON({
  url: "https://api.example.com/analytics",
  body: { event },
  retries: 1,
});

Use Callbacks for Monitoring

Implement callbacks to track message processing:

await client.publishJSON({
  url: "https://api.example.com/process",
  body: { taskId },
  callback: "https://api.example.com/callbacks/success",
  failureCallback: "https://api.example.com/callbacks/failure",
});

Handle Errors Gracefully

Always handle errors in consumer handlers:

async function handler(request: Request) {
  try {
    const data = await request.json();
    await processTask(data);
    return Response.json({ success: true });
  } catch (error) {
    console.error("Processing failed:", error);
    return Response.json(
      { success: false, error: error.message },
      { status: 500 }
    );
  }
}

Advanced Patterns

Batch Processing

async function enqueueBatch(tasks: Task[]) {
  const results = await Promise.allSettled(
    tasks.map(task =>
      client.publishJSON({
        url: `${process.env.API_URL}/process`,
        body: task,
        deduplicationId: `task-${task.id}`,
      })
    )
  );

  return results;
}

Priority Queues

async function enqueueWithPriority(task: Task, priority: "high" | "normal") {
  await client.publishJSON({
    url: `${process.env.API_URL}/process`,
    headers: {
      "X-Priority": priority,
    },
    body: task,
    delay: priority === "high" ? 0 : 60, // High priority: immediate
  });
}

Dead Letter Queue

async function handler(request: Request) {
  const retryCount = parseInt(
    request.headers.get("Upstash-Retried") || "0"
  );

  // If max retries reached, send to DLQ
  if (retryCount >= 3) {
    await sendToDeadLetterQueue(await request.json());
    return Response.json({ handled: true });
  }

  // Normal processing
  await processTask(await request.json());
  return Response.json({ success: true });
}

Troubleshooting

Spans Not Appearing

Ensure OpenTelemetry is initialized before using QStash:

import { NodeSDK } from "@opentelemetry/sdk-node";

const sdk = new NodeSDK({
  // ... configuration
});

sdk.start();

Signature Verification Failing

Make sure environment variables are set correctly:

QSTASH_TOKEN=your_token
QSTASH_CURRENT_SIGNING_KEY=your_current_key
QSTASH_NEXT_SIGNING_KEY=your_next_key

Messages Not Being Processed

Check that your endpoint is:

Publicly accessible
Returns 2xx status codes
Responds within timeout (default: 2 minutes)
Has signature verification enabled

Missing Consumer Spans

Ensure instrumentConsumer is called before verifySignatureAppRouter:

// Correct order
export const POST = verifySignatureAppRouter(
  instrumentConsumer(handler)
);

// Wrong order
export const POST = instrumentConsumer(
  verifySignatureAppRouter(handler)
);

Resources

QStash Documentation

Learn more about Upstash QStash

GitHub Repository

View source code and examples

npm Package

View package on npm

Report Issues

Found a bug? Let us know!

License

MIT

Frameworks

Vercel

OpenTelemetry Integrations

Upstash QStash

Overview

Installation

Quick Start

Publishing Messages

Consuming Messages

What Gets Traced

instrumentUpstash

instrumentConsumer

Configuration

With Body Capture

Span Attributes

Publisher Spans (`instrumentUpstash`)

Consumer Spans (`instrumentConsumer`)

Body/Payload Attributes (Optional)

Usage Examples

Basic Message Publishing

Delayed Message Publishing

Message with Callbacks

Retries and Deduplication

Message Consumer

Complete Integration Example

Setup

Publishing Messages

Consuming Messages

Callback Handlers

Best Practices

Advanced Patterns

Troubleshooting

Resources

QStash Documentation

GitHub Repository

npm Package

Report Issues

License

​Overview

​Installation

​Quick Start

​Publishing Messages

​Consuming Messages

​What Gets Traced

instrumentUpstash

instrumentConsumer

​Configuration

​With Body Capture

​Span Attributes

​Publisher Spans (instrumentUpstash)

​Consumer Spans (instrumentConsumer)

​Body/Payload Attributes (Optional)

​Usage Examples

​Basic Message Publishing

​Delayed Message Publishing

​Message with Callbacks

​Retries and Deduplication

​Message Consumer

​Complete Integration Example

​Setup

​Publishing Messages

​Consuming Messages

​Callback Handlers

​Best Practices

​Advanced Patterns

​Troubleshooting

​Resources

QStash Documentation

GitHub Repository

npm Package

Report Issues

​License

Overview

Installation

Quick Start

Publishing Messages

Consuming Messages

What Gets Traced

Configuration

With Body Capture

Span Attributes

Publisher Spans (`instrumentUpstash`)

Consumer Spans (`instrumentConsumer`)

Body/Payload Attributes (Optional)

Usage Examples

Basic Message Publishing

Delayed Message Publishing

Message with Callbacks

Retries and Deduplication

Message Consumer

Complete Integration Example

Setup

Publishing Messages

Consuming Messages

Callback Handlers

Best Practices

Advanced Patterns

Troubleshooting

Resources

License
